Frank has reproduced the chart above and is offering them for sale. Here's what Frank has to say about the above chart:

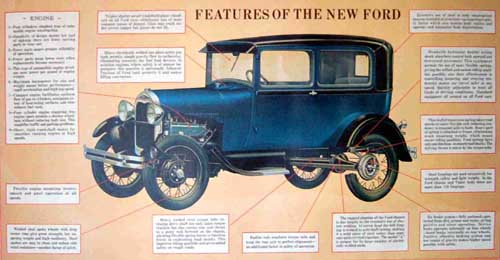

With this being the 75 anniversary of the Model A, I am pleased to announce that I have completed a new chart project “Features Of The New Ford” poster. While this chart is smaller (approximately 19” x 36”) than the original showroom print, it replicates the original full size print and is in full color. The poster shows a 1928 Tudor cutaway with details highlighting the many advances that were incorporated into the “New Ford”.

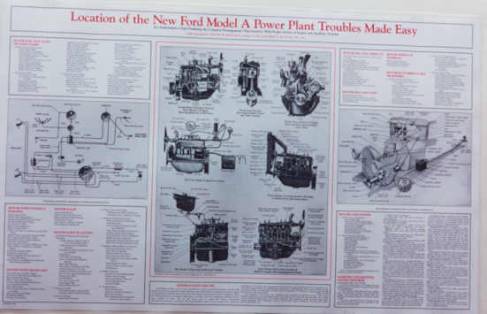

In addition, with the 2003 driving season just around the corner I am again offering the Model A diagnostic chart, "Location of the New Ford Model A Power Plant Troubles Made Easy". The cart can help identify and resolve many common Model A operational problems, discussed here on the board. The chart is a quality reprint of the original 1928 chart arranged by Victor Page. There are two minor changes to the chart in order to distinguish it from the original, otherwise the chart is as original, i.e., same size (22 x 34 inches), colors, and paper stock.

I am the only source for both charts. Both are priced at $8 each or 2/$15, plus $4 to cover shipping and handling (please add $1.10 if you wish your order to be insured). The charts are shipped via the Postal Service in a heavy tube. The charts are not only available from me but also from Snyder's and Bratton's. I reprinted the charts because they contain a wealth of information which I do not believe exists in a single location in an easy to read form elsewhere; they are an attractive addition to any Model "A"ers work shop or garage wall; and they are a valuable article of Model "A" information that may have otherwise been lost to fellow enthusiasts.

Frank L. Pollack
3324 Cross Country Drive
Wilmington, DE 19810
e-mail: frank55a@msn.com
